CÔNG TY TNHH MÁY THỦY LỰC JIANGSU WANSHIDA
| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | WANSHIDA |
| Chứng nhận: | CE and ISO9001 |
| Số mô hình: | Y83Q-6300C |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
| Giá bán: | Có thể thương lượng |
| chi tiết đóng gói: | Đóng gói đi biển |
| Thời gian giao hàng: | 30 ngày |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Khả năng cung cấp: | 10 bộ/tháng |
| Tên: | Máy cắt baler | Người mẫu: | Y83Q-6300C |
|---|---|---|---|
| Lực đẩy /cắt xi -lanh: | 630 tấn | Áp lực làm việc tối đa: | 20mpa |
| Dung tích: | 9-12 tấn/h | Nhấn phòng kích thước mở: | 5000x1750x950mm |
| Kích thước Bale (LXWXH): | (500-800) x600x (300-500) mm | Tốc độ cắt: | 4-6 lần/phút |
| Làm nổi bật: | 630T hydraulic baler shear,large hydraulic shear baler,steel plate hydraulic baler |
||

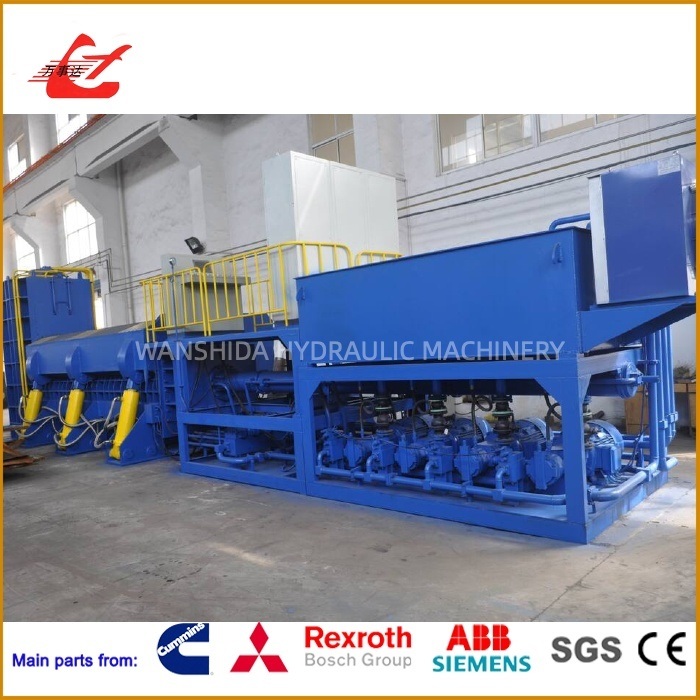

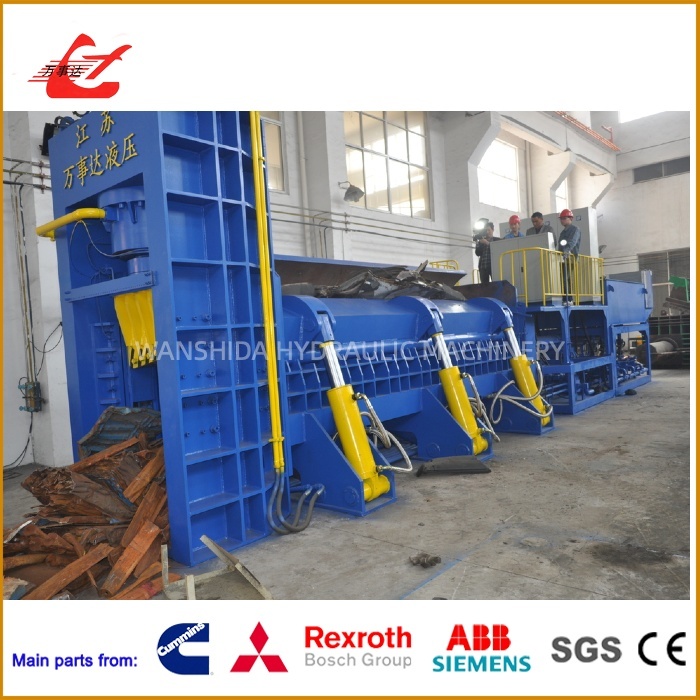

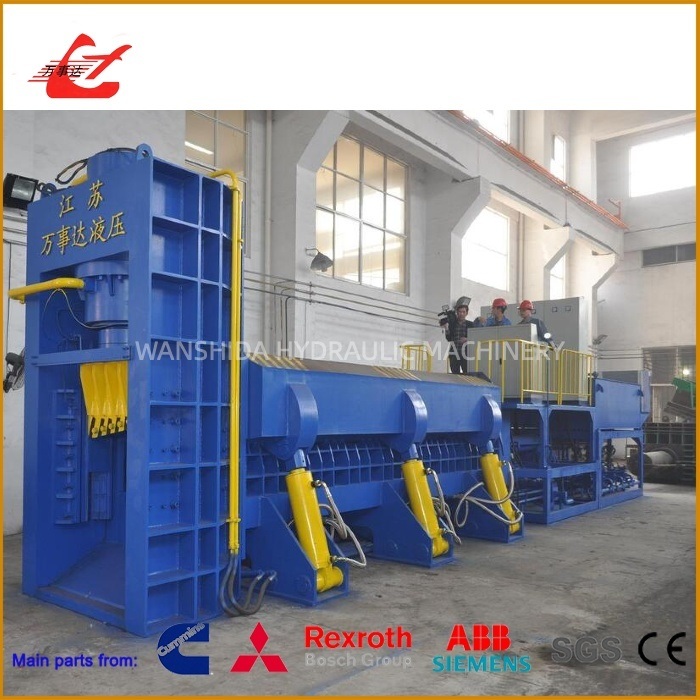

The Y83Q-6300C Scrap Metal Shear Baler combines baling and shearing functions in one powerful unit. Designed for steel mills, recycling centers, and metal processing plants, this machine delivers a shearing force of 630 tons, capable of cutting scrap up to 4mm thick with a production capacity of 9–12 tons per hour.
Equipped with a 220kW motor and an air cooling hydraulic oil system, it ensures stable performance during continuous operation. The large press room size (5000×1750×950mm) allows easy handling of bulky scrap metal for efficient compression and cutting.
Ideal for processing scrap steel, iron, rebar, round bars, channel steel, angle steel, and steel plates. It significantly reduces transportation volume and enhances metal recycling efficiency.
| Item | Specification |
|---|---|
| Model | Y83Q-6300C |
| Pushing/Shearing Force | 630 Ton |
| Max Working Pressure | 20 MPa |
| Capacity | 9–12 Tons/Hour |
| Press Room Size | 5000×1750×950 mm |
| Bale Size (L×W×H) | (500–800)×600×(300–500) mm |
| Max Scrap Thickness | 4 mm |
| Cutting Speed | 4–6 Times/Min |
| Hydraulic Oil Cooling | Air Cooling System |
| Motor Power | 220 kW |
| Machine Dimensions (L×W×H) | 12950×3510×4700 mm |
| Machine Weight | 57000 kg |
Scrap Size That Can Be Cut:
Square Steel: 100×100mm | Angle Iron: 180×180×15mm (3pcs) | Round Steel: Φ110mm | I-Beam: 320×132×11.5mm | Steel Plate: 30×450mm | Channel Steel: 320×90×10mm
Integrated Design: Combines baling and shearing for multi-purpose use.
Strong Power: 630-ton hydraulic force handles heavy and thick materials easily.
Energy Efficient: Optimized hydraulic system for faster and smoother cutting.
Smart Operation: Manual and PLC semi-automatic modes for flexible control.
Durable Structure: Heavy-duty frame with easy maintenance and long lifespan.
Q: What materials can this machine cut?
A: Suitable for cutting scrap steel, iron, steel plates, rebar, channels, and angle bars.
Q: Do you offer installation service?
A: Yes, we provide on-site or remote installation and training to ensure smooth operation.
We provide 1-year warranty and lifelong maintenance support. You can contact our service team directly by phone or online for any technical issues — we guarantee fast response and reliable support for your Metal Shear Baler.
